Stromab Matrix Fast 500

The Matrix Fast 500 is the latest in the Stromab range of automatic crosscutting machines, with a high speed upstroke saw action which depending on cutting paterns can give up to 40% more production than the standard machine. The machine is primarily designed for programmable and repetitive cutting from standard and / or random lengths of timber.
The new high speed pneumatic saw unit with variable speed control, can also be set to limit the saw stroke when cutting smaller boards, helping to increase production even further.
The pusher is fitted with a heavy duty rack and pinion drive feeding system, for fast and accurate positioning giving a high level of repeat cutting accuracy, the pusher is raised with a pneumatic cylinder forits return to its loading position, allowing the operator to prepare the next pack of timber on the table without having to wait for the pusher to return to its idle position.

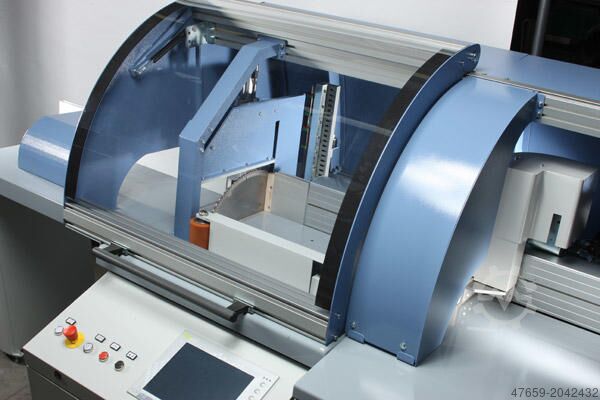

The infeed and outfeed tables are of all steel construction meaning even heavy sections or packs of timber can be processed. The saw unit and clamping area is totally enclosed by a clear hinged electrically interlocked hood that while allowing the operator a clear view of the cutting area still gives complete protection. additional safety features include full length guarding of the rear of the pusher system, whilst there is a safety pull cord running along the length of the front infeed table.

Programming and entering of cutting lists is simple with the on board Top 12 control unit. With a 12" colour touch screen display, offering a modern, robust and reliable control system with many innovative features and is ideally suited for a factory or workshop environment. As standard the machine now offers USB, ethernet and 3 levels of optimisation including "board sequence" ideal for repetitive cutting. The Matrix OPTI version offers an additional 3 optimisation criterias including "minimum waste" and automatic board length measuring suitable for random length boards. The Matrix DEFECT version offers all optimisation criterias, length measuring, a defect removal camera and timber grading. Additional options also include extended outfeed table, pneumatic side roller pressure, label and inkjet printing.

To date we have supplied over 250 Matrix saws in to the UK, with a number of customers installing several machines.

Specification

Self braking motor 10hp
Saw blade diameter 500mm
Max cutting width 390mm ( refer to chart )
Max cutting height 150mm ( refer to chart )
Pusher unit 3000 to 15000mm
Precision rack and pinion drive giving a high level of repeat cutting accuracy.
Pneumatic rising of the pusher at the end of cutting cycle
Positioning speed 100m/min
Positioning accuracy + /- 0.2mm
Elco TOP 12 control unit
Touch screen with 12" colour display
1m outfeed table
Ledpfx Afeb Tmwas Asah
Dust outlets 2 x 100mm diameter
