MEP - Vollautomat SHARK 332-1 NC 5.0

cutting diameter 300 mm
capacity 90 degrees: flat 330 x 260 mm
capacity 90 degrees: square 260 x 260 mm
capacity 45 degrees: round 260 mm
Hedsxabavopfx Aaponk
capacity 45 degrees: flat 270 x 200 mm
capacity 60 degrees: round 180 mm
capacity 60 degrees: flat 170 x 170 mm
height of material-table 600 mm
Pitch min/max 50.000 mm
vice 335 mm Öffnung
band speed 15 - 100 m/min
automatic feeds 600 mm
dimensions of saw-band 3650 x 27 x 0,9 mm
Control MEP CNC
total power requirement 2.2 kW
weight 1.105 kg
range L-W-H 3,3 x 2,83 x 2,23 m

electro-hydraulic band saw fully automatic, with additional :
* semi-automatic
* semi-automatic-dynamic
* manual .. operation

Description:
- robust electro-hydraulic band saw fully automatic (INDUSTRY)
* MEP - WINDOWS numerical control unit
* User interface with 7” touch screen display
* mechanical buttons for the sawing machine’s operating functions
* guarantees reliable operation, simple and intuitive
* real-time control of all cutting parameters
* pivoting arm enables comfortable and safe operation
* display and recording of alarm and error messages
- miter cuts with automatic cycle from 0° to 60° left
- semi-automatic, semi-automatic-dynamic and manual cycle
* miter cuts from 45° right to 60° left
- manual or semi-automatic dynamic cycle selectable
* to make cuts without programming
- protective housing for the safety of the worker
- continuous regulation of the cutting speed from 15 to 100 m/min
* via frequency converter (inverter)
- Latest generation hydraulic unit
* extremely powerful with low energy consumption.
- Material feed with stepper motor via ball screw
* mounted on opposing ball bearings
* Single stroke 600 mm repeatable to saw any length.

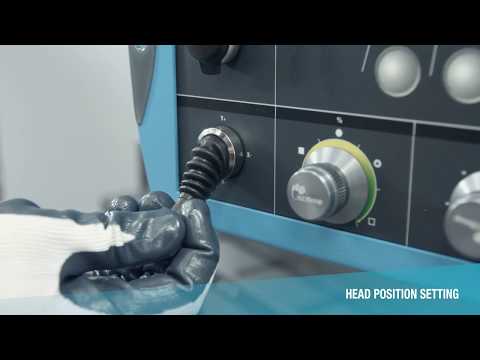

- Positioning of the saw head and movement of the feeder using a joystick.
- Automatic detection of the start of the cut position
- Manually operated band tension control with indication on the display
* using an electronic converter
- Automatic monitoring of the cutting load
* using a servo valve mounted directly on the cylinder
- The coolant tray is built into the base frame
- Chip removal brush
- Bimetal saw band for solid and profile material
- Tools and instructions for use with spare parts list

* Angularity = 2/12 degrees
* Length accuracy = plus/minus 0.1 mm per feed
