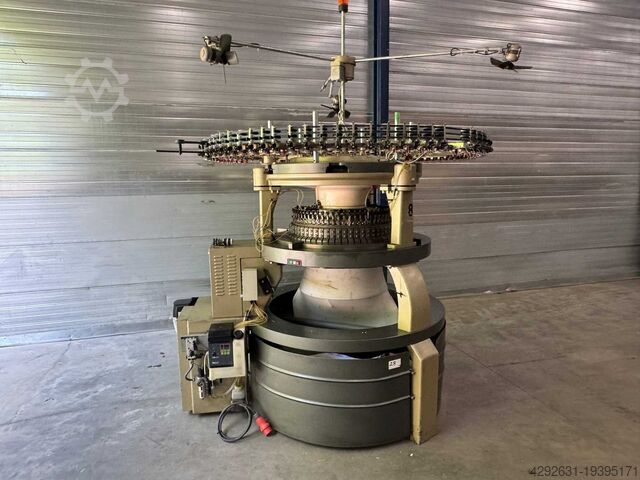

Mayer & Cie. inovit 2.0 rondbreimachine

General technical specifications of the INOVIT 2.0 II
Cylinder diameter: 30 inches (76 cm)

Needle gauge: E10 to E28

Number of feeding systems: 62 with a 30-inch cylinder

Maximum speed: Up to 35 revolutions per minute at 30 inches

Speed factor (SF): 1050

Cam tracks: 4 tracks – 2 in the dial and 2 in the cylinder

Production capabilities: Interlock, 8-lock, piqué, rib fabrics and other double jersey structures

Additional features: Option for Lycra integration and rapid switching between different fabric structures.

Remarks on machine number 41254
Although there is no specific data available for machine number 41254, the above specifications can serve as a guideline for this machine's capabilities.

Complete with accessories.

Additional information.

Length (machine): 3000 mm
Width (machine): 3000 mm
Height (machine): 2800 mm

These values indicate the external dimensions of the machine.
Ksdpjwt Rxdofx Ad Eedw

Capacity (cylinder diameter): 762 mm
Number of needles: 1680 units
Needle diameter: 1.41 mm
Number of yarn spool holders: 62 units
