自动带锯 - 卧式

JAESPA W320-AZ / P

Technical details:

cutting diameter: 320 mm
saw band length: 5320 mm
saw band width: 32 mm
cutting range 90 degrees: round: 320 mm
cutting range 90 degrees: flat: 320 x 320 mm

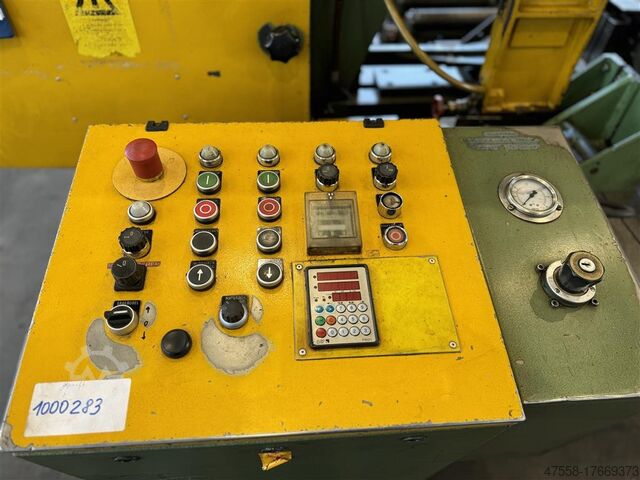

control: Serie P 9521
height over floor: 730 mm
band speed: 15 - 110 m/min
total power requirement: 4,9 kW
machine weight approx.: 2200 kg
dimension machine xH: 1,9 x 2,95 x 1,8 m

Heavy-duty hydraulic production band saw in 2-column design - fully automatic
Application for: Solid and profile materials made of steel as well as cast iron, light and non-ferrous metal

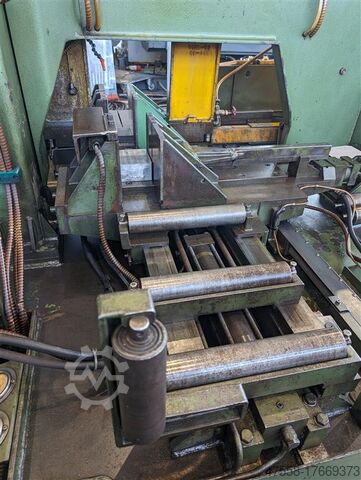

Hydraulic material feed, hydraulic clamping of the clamping jaws
Length measurement via precision glass measuring rod length 400mm
Redsu Nii Sopfx Abgecb
Max. cut-off length preselectable 9999.9mm
Automatic multiple stroke
Saw band cleaning brush + 1x spare brush
Chip conveyor
Coolant device



*
