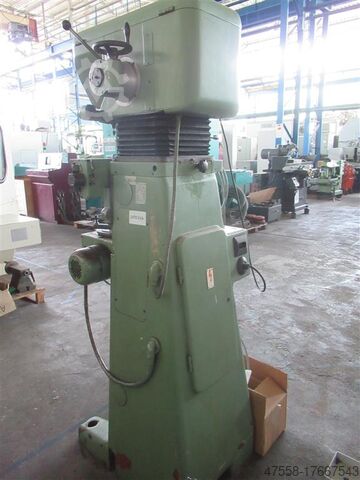

中心磨床

WMW Suhl SIX 160x1000L

Technical details:

shaft diameter: max. 120 mm
work piece - max.: 800 mm
height of profile: Tiefe: max. 90 mm
grinding spindle speed: nicht bekannt U/min
Table dimensions: Ø 150 mm
voltage: 380 V
total power requirement: 1,1 kW
weight of the machine ca.: 0,675 t
dimension machine xH: 0,75 x 0,70 x 2,0 m

Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder.
Spindle head technical details:
-equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head.
-travel=vertical 950mm by handwheel and transversal 80mm by crank handle
-abrasive device with diamond, adjustment crosswise= 80mm.

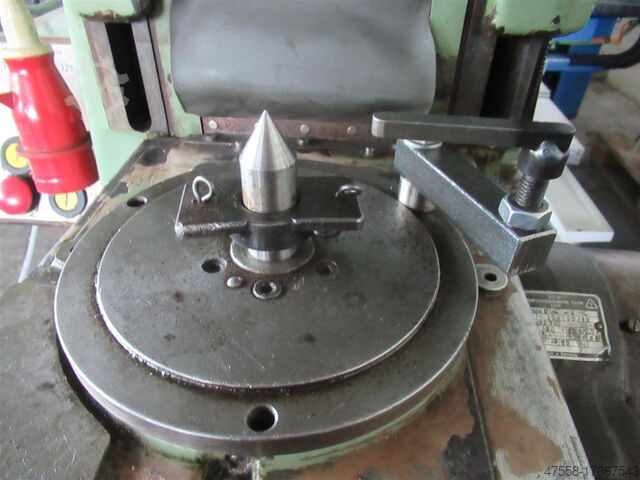

Table other specifications:
-with fixed tip holder 60°.
-speed 63 / 125 rpm.
-adjustment vertical 600mm, in height 1.100mm, operation manual.

centering block:
-prismatic guide

accessories:
-fixed tip L=180mm
-fixed tip L=300mm
Cedou Ngr Djpfx Aa Norh
-div. shank grinder
-div. clamping and auxiliary tools

*
