四面刨

WEINIG UNIMAT 23 E na 6 głowic

Catalog number 7289

TECHNICAL DATA
- Maximum workpiece width: 230 mm
- Maximum workpiece height: 170 mm
6 spindles:
1) Bottom horizontal, 230 mm, 5.5 kW
2) Right vertical, 170 mm
3) Left vertical, 170 mm (spindles 2 and 3), 11 kW
4) Top horizontal, 230 mm, 11 kW
5) Top horizontal, 230 mm, 7.5 kW
6) Bottom horizontal, 230 mm, 11 kW

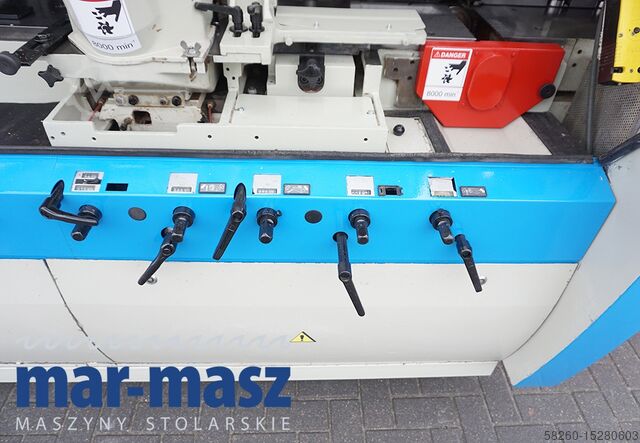

- All spindles adjustable up/down, left/right
- Spindles 4 and 5 electrically adjustable up/down
- Spindle speed: 8,000 rpm
- Spindle diameter: 40 mm
- All spindles equipped with electric braking
- 6 feed-in, driven, toothed upper rollers, including 1 double
- Double exit, driven, rubber-coated upper roller
- Double exit, driven, rubber-coated lower roller
- Side pressure unit
- Feed via Kardana shafts
- Pneumatically tensioned rollers
- Infinitely variable feed speed: 6–24 m/min
Kdedsrwmr Nepfx Abtow
- Feed motor: 4 kW
- Electric planing thickness adjustment
- Body lifting motor: 0.55 kW
- Central table lubrication
- Extraction nozzle diameter: 6 × 140 mm
- Dimensions (L×W×H): 4,900 × 2,400 × 2,000 mm
- Weight: approx. 4,000 kg

FEATURES
– German-made, WEINIG brand
– With 6 heads
– Not repainted
– Used planer, very good condition

Original pictures

Net price: PLN 142,900
Net price: EUR 34,000 (based on an exchange rate of 4.2 EUR)
(Prices may vary with significant exchange rate fluctuations)
