VDF BOEHRINGER D 480

Technical details:

turning diameter over bed: 500 mm
turning diameter over support: 260 mm
turning length: 950 mm
center height measured in bed: 220 mm
centre distance: 1000 mm
revolution per minute: 11,2 - 2240 / 24 step U/min
spindle bore of work spindle: 62 mm
tailstock quill adjustment:: 210 mm
longitudinal feeds:: 0,045 - 1,6 mm/U - 32 step
cross feed: 0,02 - 0,71 mm/U - 32 step
total power requirement: 11 kW
weight of the machine ca.: k.A. t
dimension machine xH: 3,3 x 1,2 x 1,6 m

Ledpfx Ajv A Sqhsb Rehb

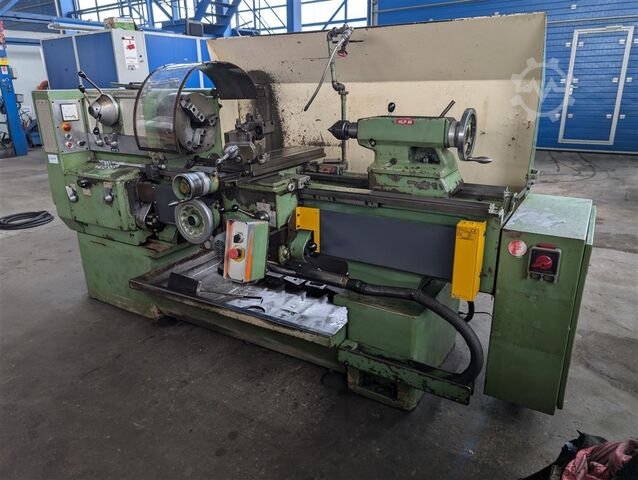

The machine is in a very good condition (very quiet spindle run) in Leipzig.
Top slide rotatable 360°
3-jaw lathe chuck Ø 315mm with jaws (inside/outside) for speed 2000 rpm.
Thread cutting: metric, modular thread, inch
Chip protection wall
Chuck protection (mechanical)
MULTIFIX steel holder with Ø 40mm drill steel holder
Chip collection tray
Coolant supply with pump
Protective device for lead screw
Machine base

UVV is pre-equipped ( UVV=Accident Prevention Regulations)

*
