立式加工中心

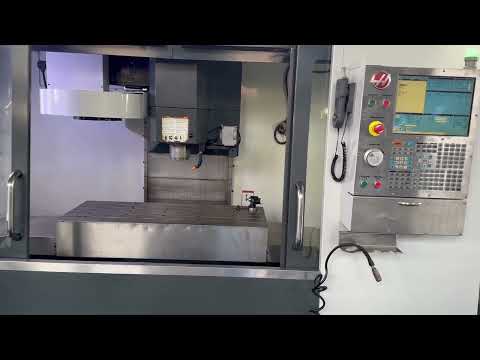

USED HAAS VF3 CNC Vertical Machining Centre

Name: USED HAAS VF3 CNC Vertical Machining Centre
Brand: USED HAAS
Availability: InStock

製造年份

2011

狀況

二手

位置

Erith

立式加工中心 USED HAAS VF3 CNC Vertical Machining Centre

USED HAAS VF3 CNC Vertical Machining Centre

显示地图

机器数据

機器描述:: 立式加工中心

製造商:: USED HAAS

模型:: VF3 CNC Vertical Machining Centre

序列號:: 1081462

製造年份:: 2011

狀況:: 非常好（已使用）

功能性:: 完全功能

价格和位置

位置:: Europa Trading Estate, Fraser Road Unit 7, DA8 1PW Erith, United Kingdom

撥打

优惠详情

產品ID:: A16493046

最後更新:: 於 18.08.2025

描述

SPECIFICATION

Travel
X axis stroke 1016mm
Y axis stroke 508mm
Z axis stroke 635mm
Distance spindle nose to table 102-737mm

Table
Width 457mm
Length 1219mm
Max. Weight on table 1588kg
T Slots : width 16mm
: pitch 80mm

SPECIFICATION Cont’d

Spindle
Taper size No.40
Speed 0-7500rpm

Bearings
Bearing lubrication Air/oil injection
Cooling Liquid cooled

Motor
Spindle motor, max. rating 14.9kW

Feedrate
Rapid X, Y & Z axis 25.4m/min
Max. Cutting feedrate 16.5m/min

Toolchanger
Capacity 20 tools
Type BT40

General
Approximate machine weight 5670kg
Air supply (min) 113lpm, 6.9 bar

MACHINE EQUIPPED WITH:-
Haas (Fanuc compatible) CNC Control system
Through spindle coolant
Wireless intuitive probing system
High speed machining
Programmable coolant nozzle
Nedpfxst Dmt As Ab Rscl
Automatic lubrication system
Enclosed guarding
Swarf auger
Lighting
