数控加工中心 1500 x 3000 毫米

TechnologieCNC 1530 INDUSTRY 2.0 6KW

The INDUSTRY 2.0 series differs from the standard series by using the best and most precise engines in its class and drive transmission, which significantly increase the machine's machining capabilities, making it the most industrialized series in this price range.

The INDUSTRY 2.0 series CNC milling plotter with a working surface of 1500x3000mm and a clearance in the Z axis of 300mm is equipped with a 6kW electrospindle and 24,000 rpm on ceramic bearings. The machine's work table is made in hybrid technology - it has vacuum sections and subsections enabling automatic, non-invasive clamping of the processed material as well as T-slots enabling manual clamping.

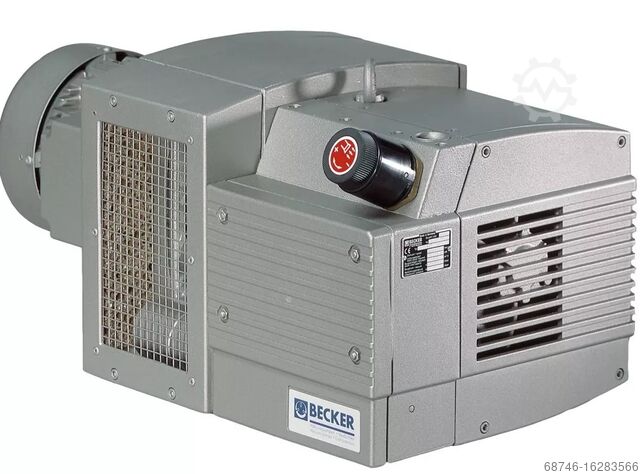

Included with the Milling Machine Becker KVT 3.140 Vacuum Pump

Manufacturer: TechnologieCNC
Model: 1530 INDUSTRY 2.0
Godpetu S Srefx Afwetw
Electric spindle: 6kW, 24000rpm on full ceramic bearings
Max. working speed in slow passages: up to 33m/min
Max. working speed in the material: up to 25m/min
Program resolution: 0.01mm
Mechanical resolution: 0.04mm
Working surface X/Y/Z: 1500x3000x300mm - Hybrid table (vacuum+T-slot)
Control: NK-105 controller
Achieving high working speeds and machining stability is guaranteed by the Leadshine EASY-SERVO servo drives used in the machine with an encoder and drive transmission via a SHIMPO planetary reducer
Software: CAD/CAM as standard: Artcam Open 2016
Power supply: 3PH, 400V, 50-60Hz
Dimensions:
For transport - 365 / 210 / 220
Machine assembled and ready to work - 365 / 245 / 230

Hybrid table, i.e. vacuum table enabling non-invasive element fixing, leaving the possibility of manual fixing of irregular shapes
The machine frame is fully welded, stress-relieved and then milled, which ensures machining accuracy and stability of work

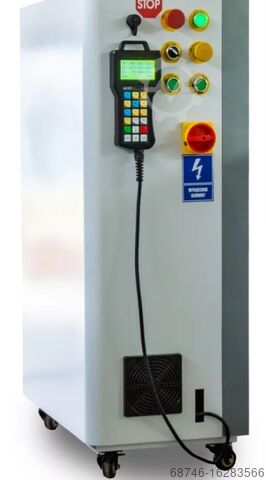

Machine control using the DSP NK-105 controller
A tool height sensor is included

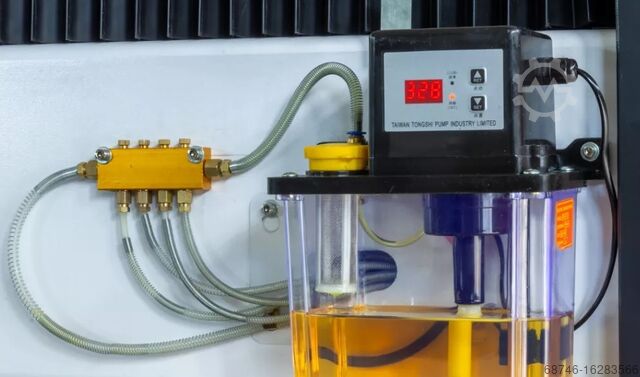

A central oil lubrication system for trolleys and guides as standard
The drive is transferred via a reducer
The machine moves on high-class guides and PMI 25mm linear bearings in all axes (X, Y, Z)
Double LEADSHINE Easyservo servo drive on the Y axis
Machine wiring made of high-class fire protection cables.
The electric cables used to build the milling machine are adapted to bending and are protected against deformation
