TCS 150T

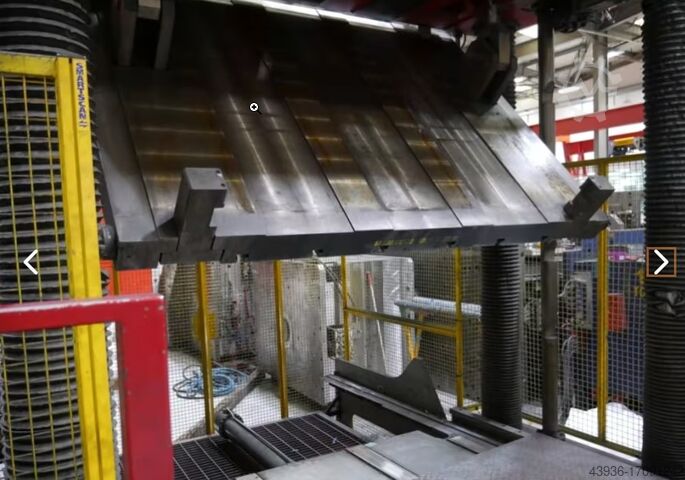

Hydraulic press
TCS - 150T
MACH-ID 8821
Manufacturer: TCS
Type: 150T

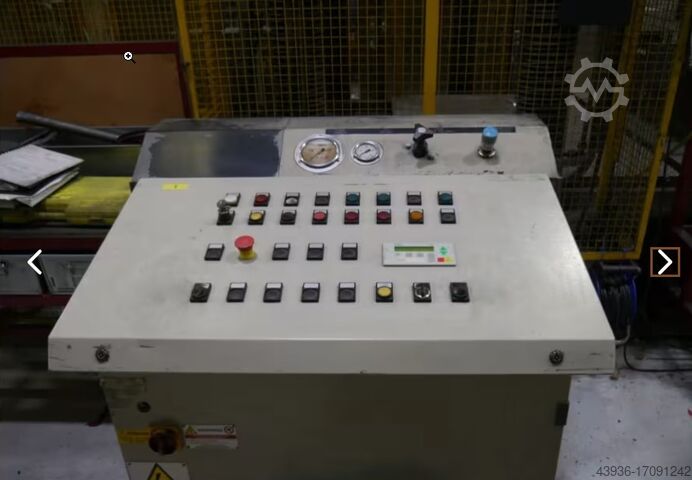

Control system: Siemens SIMATIC OP7
Year of manufacture: 1999

Table load sliding table 20000 Kg
Gjdpoulwzmsfx Acvebg
Table load upper table 9000 kg
Table out feed stroke 2100 mm
Column diamater 180 mm
Closing force 1500 Kn
Opening force 700 Kn
Laser safe CE Safety
Power 15 kW


Specifications
Metric US Standard
Distance between uprights
2000 mm
Installation height
2000 mm
Table length
1500 x 2000 mm
ram stroke
1800 mm
Starting speed
50 mm/min.
Working speed
8 mm/min.
Return speed
50 mm/min.
Table rotation
0 - 270 rpm
Table rotation
0 - 180 °

Dimensions (estimation)
length
4800 mm
width
5600 mm
height
5200 mm
Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.
