1,750 x 1,100 毫米 / 2 层 / 7.76 米（延长）

Stow Pal Rack NS Palettenregalanlage Palettenregal Regal

Technical details for the pallet racking system:
Racking system: Stow
Type: Pal Rack NS

Technical setup data:
Number of rack rows: 01 pc.
Length per rack row: approx. 7,760 mm
Number of bays per rack row: 05 pcs. at 1,450 mm each
Number of levels plus ground level: 02 pcs.

Currently in stock: approx. 2 sets!

Scope of delivery includes:
06x pallet rack frames, used
Material color: RAL 5015 sky blue
Frame type: PNFB12
Profile dimensions: 85 x 65 x 1.75 mm
Including horizontal and diagonal braces, base plates
Frames are pre-assembled (bolted construction)
1,750 mm high
1,100 mm deep

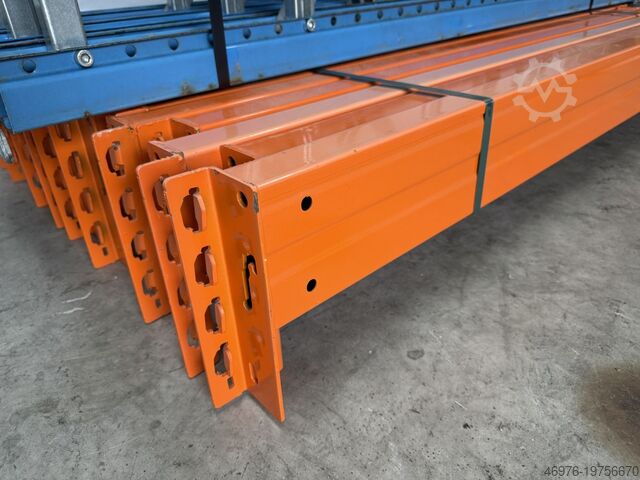

20x pallet rack beams, used
Material color: orange
Beam type: PNBH0443/1.5
Box profile: 130 x 50 mm
Connector: 4 hooks
Design: box end beam
Clear width: 1,450 mm

40x locking pins, used
Material color: sendzimir galvanized
For securing the beams against accidental lifting

24x wedge anchors, new
Manufacturer: Hilti
Model: HST2 M12x105/10
Material: carbon steel, galvanized
Approved for: cracked concrete

12x leveling shims, used
Design: fully galvanized
For leveling rack frames installed on uneven floors

01x load plate
With information on bay and compartment loads, manufacturer, and commission number
Lajdpfx Afow I Sx Tj Aoh
Dimensions: 420 x 297 x 3 mm

General information about the item:
This item is only offered for collection. Any requested transportation or shipping of this item is associated with additional costs, which can be provided upon request depending on the delivery location and scope.
