1300升可加热/冷却压力罐，Aisi 316

Steinemann 8092

Location: Bremen
Condition: Used
Volume: 1,300 liters
Vacuum: 1.0 bar
Max. overpressure: 3.2 bar

Tank
Max. operating temperature (tank): 200 °C

Top head: bolted lid
Design: suspended
Tank
Support type: lug supports

Heating/Cooling: available
Jacket volume: 23.0 liters
Max. permissible operating overpressure: 16.0 bar
Max. permissible operating temperature: 200 °C
Cylinder temperature control: half-pipe coil
Jacket
Bottom temperature control: half-pipe coil

Internal diameter: 990 mm
Cylindrical height: 1,330 mm
Technical data / Dimensions
Bottom wall thickness: 3 mm

Cylinder wall thickness: 5 mm
Technical data / Dimensions
Top head wall thickness: 4.1 mm

Technical documentation: drawing

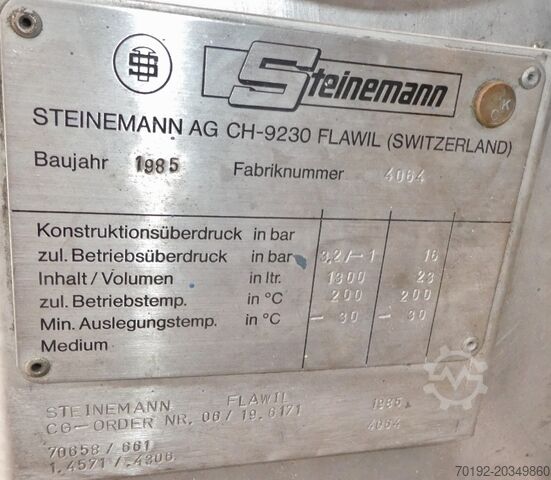

Name plate:
Features

Outlet: flange DN80
Note: slight residues

Remarks: One tank is missing the agitator; one tank with insulation; 2 lugs made of V2A (mounting surface reversed); flanges partially made of carbon steel (see photos)
Last application: pharmaceutical chemicals
Product-contact material: V4A 1.4571 (AISI316)
Material specification

Temperature control system material: AISI 304 (V2A) 1.4306
Kodpfxoxqa Sfj Af Asnc

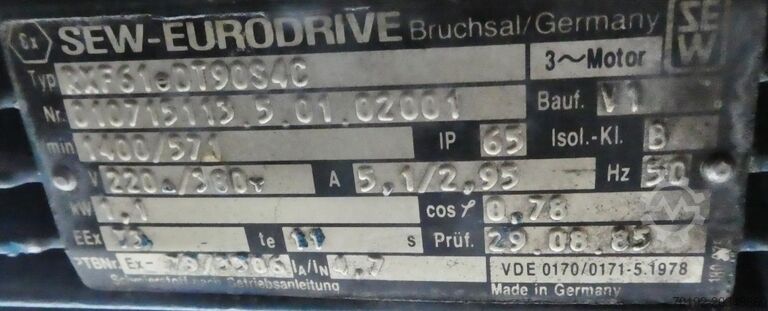

Output: 1.1 kW
Speed: 571 rpm
Agitator: propeller
Agitator

Voltage: 220/380 Volt

Explosion protection: motor is explosion-proof (compliance with current ATEX regulations under local conditions must be checked)
Agitator

Agitator arrangement: eccentric in top head
