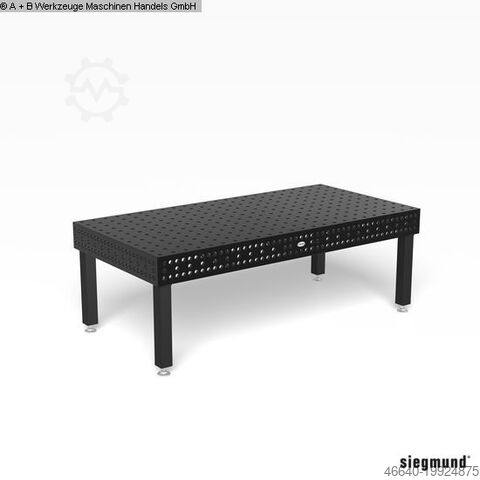

SIEGMUND 28, PROFESSIONAL EXTREME 8.7

table length 3000 mm
table width 1500 mm
table height (lateral area) 200 mm
weight 1374 kg
SIEGMUND authorized dealer - all items available!

Product description
- Through hardened tool steel X8.7 + plasma nitriding
- Material thickness approx. 24.5 - 27 mm
- Sidewall made of high quality steel S355J2 + N + plasma nitriding
- Hole Ø 28 mm
- Surface holes in a diagonal grid
- Rounded corners, edges and holes
- Height of side wall 200 mm
- Drill holes in the side wall in a diagonal grid
- Including scaling on the surface
- Construction reinforced by ribs
- Grid lines enable precise structures

The welding tables are provided with a scale as standard.

Plasma nitrided version:
- Protection against rust / scratches / weld spatter adhesion
- more corrosion-resistant / higher load capacity

Furnishing:
Pedpexabiwofx Aifsgn
- 28 hole pattern / dimensions 3000 x 1500 x 200 mm
- Extreme plasma nitrided version with scale
- with diagonal grid on the table surface
- Sidewall with diagonal grid
- incl. 6x base equipment
