珠宝行业车床

SCHUMACHERTECH TLI 10

!!! PHOTOS AND MORE INFORMATION CAN BE FOUND IN THE PDF DOCUMENT!!!
!!! (PDF visible only on the PC website) !!!

REASON FOR SALE:
Machine purchased in 2018, operated until 2020, then decommissioned and preserved as a backup machine following the purchase of another CNC machine.

DESCRIPTION:

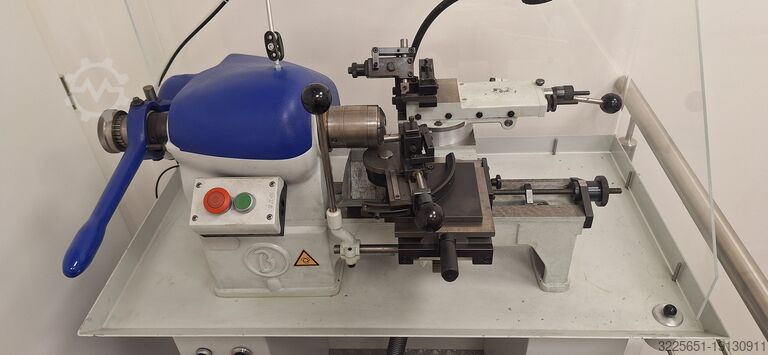

We offer a manual lathe Bezinger TLI 10 designed for producing wedding rings and specialized applications. The machine uses diamond tools for precision machining and achieving a perfect ring polish. It is capable of highly accurate machining of the inner, side, and outer surfaces of rings, including radii. Special separate fixtures enable individual operations without the need for adjustment or replacement of accessories.
- A unique feature of the lathe is the vacuum chip extraction via a vacuum cleaner hose (vacuum cleaner not included in the offer).
- In addition to fixtures for gold processing, the machine also includes additive fixtures for manufacturing platinum rings.
- The sales package includes sets of mandrels for inner clamping of rods and tubes in 4 different widths. Each set contains 40 sizes of mandrels.
- Also included is a set of tools, see PDF attachment for details.

Type: TLI 10
drive: 0.55 KW with electric brake
speed: 0-1400 rpm
Lrodpfowi Iu Ujx Ahzou
tension: 380V; 50/60Hz
dimensions: 100 x 70 x 130 cm
weight: 170 kg
