平衡器

SCHENCK 30HBAD

Balancing machine upgraded in 2009.


1 Machine base, welded construction

1 Balancing unit
Vertical, single plane, permanently calibrated,
1 special spindle with centric flange
1 piezo-electric vibration sensor
1 3-phase drive motor of 1.5 kW, driven by a belt

1 Protractor disk
300 mm diameter, with 360 °, mounted on the spindle

Hfedpsq Umcrefx Abded
1 Safety guard
For diameters up to 600 mm and heights of 420 mm

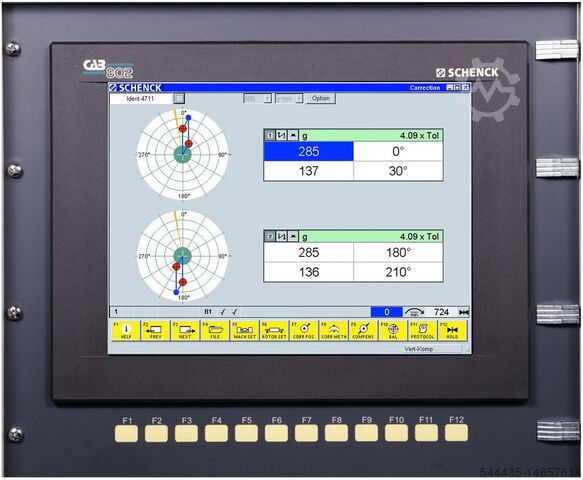

1 SCHENCK CAB 803 measuring device
- With direct data entry system via touch screen
- Industrial PC with active TFT color monitor
- Visualization of results via vector meters
- Network capability
- Polish dialogue
- Modular, easy-to-use system design
- Optimized signal processing system via digital Schenck MMD filter
- Intelligent, self-diagnosing measurement electronics system
- Operation using standard Windows routines
- Programs for:
- Straight compensation, keyway, compensation index
- Tolerance calculation according to ISO 1940
- Log report in PDF format

Balancing speeds from 0 to 720 RPM - Smooth
Max residual unbalance 5 - 10 gmm (DIN 1319)
