SAC SUERI - ITALY T 4

Code: 0320
Brand: SAC SUERI - ITALY
Model: T 4 - CE Standard

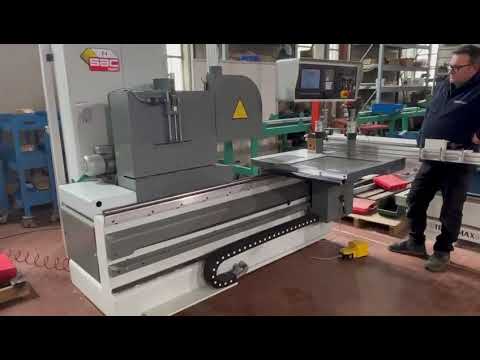

Electronic tenoning machine for wooden frames, doors, cabinet doors, furniture, and various - CE Standard

Technical data:
End trimming saw with continuous axis positioning - Horizontal stroke 130 mm - Motor power 3,2 Kw - Blade diameter 400 mm Hole 30
Tenoning spindle - Spindle length 320 mm - Spindle diameter 50 mm - Motor power 5,5 Kw - Continuous axis positioning - Max tool diameter 350 mm
Tenoning carriage table size 750 x 900 mm - Motor power 1,1 Kw - Working speed 3/10 mt/min - Positioning speed 30 mt/min - Tilting guide - Guide with stop and display
Min workpiece height 30 mm
Max workpiece height 90 mm
Min workpiece width 30 mm
Max workpiece width 600 mm
Fodpfx Asytg R Isafjgf
Min/max workpiece length 200/3000 mm
Max tenoning depth 130 mm
Max squaring width 1000 mm
Electronic control of all machine functions - Alphanumeric keyboard - Monitor LCD 9,5"- 800 storable programs - Free programming by the operator - Sequential work programs
Suction port diameter mm 100/160
Overall dimensions mm 2250 x 1800 x 2050 h
Weight kg 1800
