加工中心-卧式

MORI SEIKI NH 4000 DCG

x-travel 560 mm
y-travel 560 mm
z-travel 630 mm
Rjdpfx Aowbi Adsi Tjch

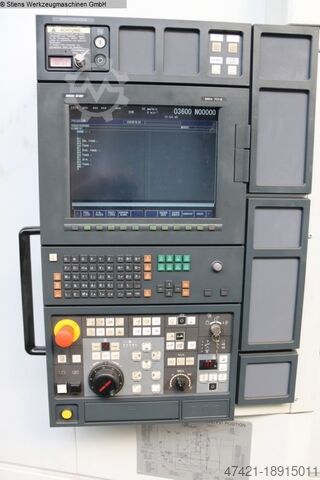

Control MSX 701 III MAPPS
Max. rpm 14.000 min/-1
power capacity - main spindel 18,5 / 11 kW
max. Torque 120 Nm
tool taper MAS BT 40
distance spindle center to table 80 - 640 mm
distance Spindlenose and center of table 100 - 730 mm
numbers of pallets 2
size of pallet 400 x 400 mm
max. workpiece weight 400 kg
max. workpiecediameter 630 mm
max. workpiece height 900 mm
change time of pallets 6,0 sec
b - axis 0,001 °

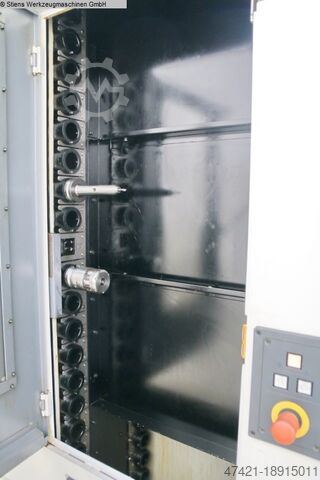

number of toolpositions 60 pos.
tool taper MAS BT 40
max. tool diameter 70 / (140) mm
max. tool length 400 mm
max. tool weight 8,0 kg
rapid traverse ( X / Y / Z ) 50 m/min
feed speeds 0 - 50.000 mm/min
Tipp feed 0 - 1.260 mm/min
total power requirement 35 kVA
weight of the machine ca. 9,8 t
dimensions of the machine ca. 5,5 x 3,5 x 2,8 m

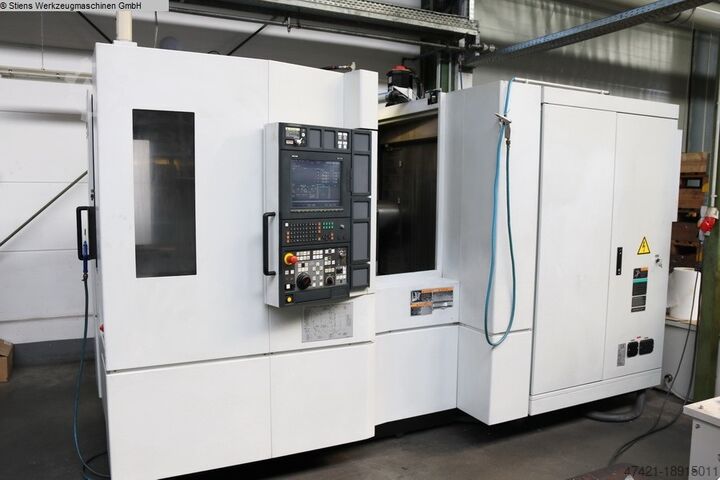

CNC - Machiningcenter Horizontal
MORI SEIKI - NH 4000 DCG

- pallet-changer

- Control options
Program restart, cylindrical and spiral interpolation
High-speed milling cycles, island and pocket milling cycles
