Mazak Integrex 100-IV ST

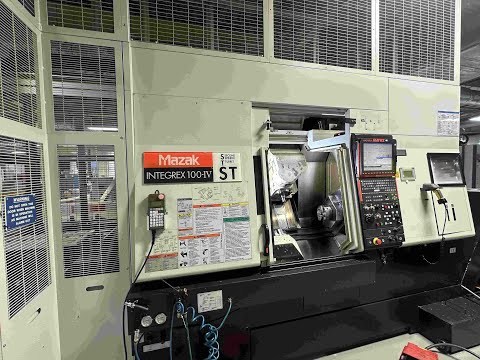

Mazak Integrex 100-IVST CNC Mill/Turn Lathe

Machine Type: CNC Mill-Turn Lathe with Automation
Year: 2006
Control: Mazatrol Matrix
Production Hours: 43464hrs
Condition: Excellent (New Sub Spindle Fitted in 2025)
Crodpfx Aov D Hpnsa Njh

Includes
GL50F Gantry Loader
Automatic Door
Selection of Tool Holders
Cromar Swarf Conveyor
MMS 1000 Filter System
Cromar Coolant Filtration
Sump Pump
Fire Suppression
70 Bar High Pressure Coolant

Technical Specifications
Max Turning Diameter: 545mm
Max Turning Length: 753mm
Bar Passage: 52mm
Main Spindle Drive: 11kW
Main Spindle Speed: 6000rpm
Spindle Nose: A2-5
Sub Spindle Drive: 11kW
Sub Spindle Speed: 6000rpm
Counter Spindle C Axis: 0.001° indexing
Milling Spindle Drive: 5.5kW
Milling Spindle Speed: 12000rpm
B Axis: 225°
Spindle Taper: Capto C6
X1-Axis Travel: 410 mm
Y1-Axis Travel: 140 mm
Z1-Axis Travel: 805 mm
X2-Axis Travel: 220 mm
Z2-Axis Travel: 780 mm
W-Axis Travel: 790 mm
ATC Stations: 40
Max Tool Length: 200mm
Max Tool Diameter: 90mm
Max Tool Weight: 39.2N
Lower Turret: 9 Stations
Coolant: 70 Bar High Pressure Coolant
Machine Dimensions(excluding GL50F): 3100 x 2340 x 2140mm
Machine Weight: 8,200kg

GL50F Gantry Loader Specifications
Cylinder Diameter: 56mm
Cylinder Stroke: 33mm
Max Pressure: 0.99MPa
Max Loading Capacity: 49N x 2(5kgf)
Loading/Offloading Conveyor
Front & Rear Entry
