420升可加热/冷却压力罐，Aisi 316 带绝热夹套
9865

EXW 起拍價不包含增值稅

€8,500

狀況

二手

位置

Bremen

显示地图

机器数据

機器描述:: 420升可加热/冷却压力罐，Aisi 316 带绝热夹套

模型:: 9865

狀況:: 二手

价格和位置

EXW 起拍價不包含增值稅

€8,500

位置:: Bremen

撥打

技术细节

油箱容量:: 420 l

优惠详情

產品ID:: A20349200

參考編號:: 9865

最後更新:: 於 22.10.2025

描述

Location: Bremen
Condition: used
Volume: 420 liters
Vacuum: 1.0 bar
Max. overpressure: 3.2 bar

Tank

Max. operating temperature (vessel): 130°C

Top: bolted lid
Construction type: vertical
Tank

Base support: legs
Number of legs: 3 pieces

Heating/Cooling: available
Double jacket volume: 20.0 liters
Max. allowable operating overpressure: 6.0 bar
Max. allowable operating temperature: 130°C
Cylinder temperature control: double jacket

Heating/Cooling jacket

Bottom temperature control: double jacket

Insulation: available

Insulation

Insulation jacket: hermetically welded
Insulation jacket material: stainless steel

Internal diameter: 785 mm
Cylindrical height: 700 mm
Overall width: 1,050 mm
Overall length: 1,150 mm

Equipment

Manway / Dome: on top

Nameplate:

Equipment

Outlet: clamp
Outlet (alternative entry): 45 mm

Remarks: One of the pressure vessels is sold with 3 load cells; pneumatic bottom drain valve mounted at outlet; manway diameter approx. 300 mm
Previous application: pharmaceutical industry
Product-contact material: V4A 1.4435 (AISI316)
Double jacket material: V2A 1.4541 (AISI304)

Material properties

Leg material: stainless steel

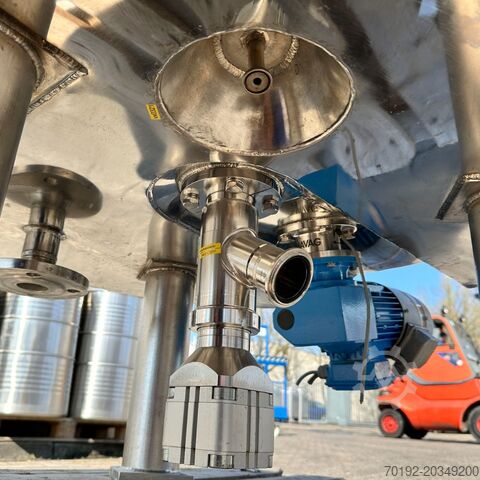

Agitator

Agitator manufacturer: MAVAG AG

Power: 0.55 kW
Knodpfx Afjxqakuo Aec
Speed: 2820 rpm
Agitator: magnetic agitator
Agitator

Voltage: 230/400 V
Agitator arrangement: bottom mounted
