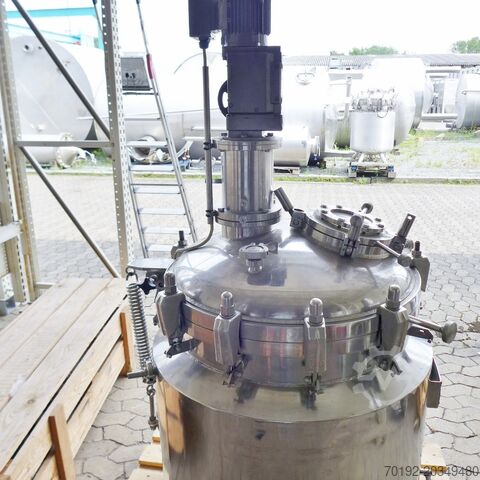

259升可加热/冷却压力罐，Aisi 316材质，带螺旋桨搅拌器
9158

EXW 起拍價不包含增值稅

€12,500

狀況

二手

位置

Bremen

显示地图

机器数据

機器描述:: 259升可加热/冷却压力罐，Aisi 316材质，带螺旋桨搅拌器

模型:: 9158

狀況:: 二手

价格和位置

EXW 起拍價不包含增值稅

€12,500

位置:: Bremen

撥打

技术细节

油箱容量:: 259 l

优惠详情

產品ID:: A20349480

參考編號:: 9158

最後更新:: 於 22.10.2025

描述

Location: Bremen
Condition: used
Volume: 259 liters
Vacuum: 1.0 bar
Max. overpressure: 3.0 bar
Tank

Max. operating temperature vessel / °C: 142 °C

Top cover: removable / hinged top cover
Design: vertical
Tank

Support configuration: mobile on castors
Number of legs: 4 pcs

Heating/cooling: available
Double jacket volume: 18.0 liters
Max. permissible operating overpressure: 3.0 bar
Max. permissible operating temperature: 142 °C
Kjdpfxoxqavks Af Ajnc
Cylinder temperature control: double jacket
Heating / cooling jacket

Bottom temperature control: double jacket

Insulation: available
Insulation

Insulation jacket: hermetically welded
Insulation jacket material: stainless steel

Internal diameter: 690 mm
External diameter: 830 mm
Cylindrical height: 470 mm
Total height: 2,000 mm
Equipment

Manhole / dome: handhole

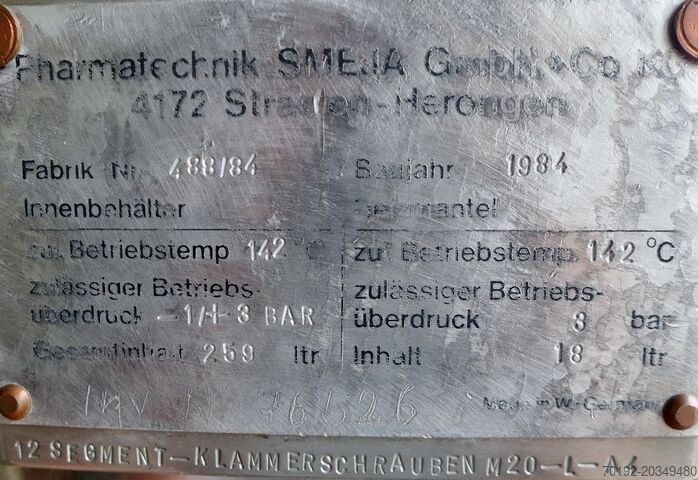

Nameplate:
Features: ball valve
Equipment

Outlet: available

Remarks: Handhole diameter 200 mm; minor dents in the insulation jacket
Previous use: pharmaceutical
Product-contact material: V4A 1.4571 (AISI 316)
Material properties

Temperature control system material: V2A 1.4301 (AISI 304)
Foot material: stainless steel

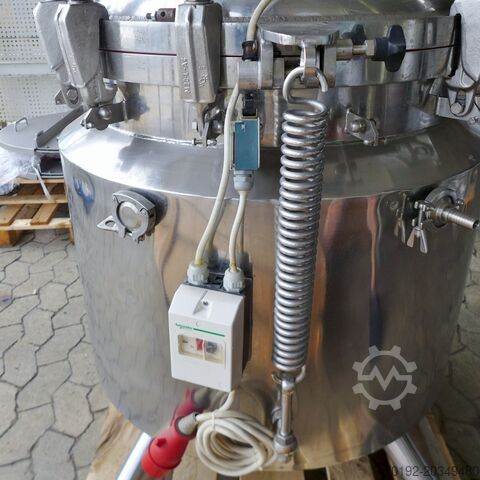

Power: 0.34 kW
Speed: 71 - 640 rpm
Agitator: propeller
Agitator

Voltage: 220/380 volts

Explosion-proof: Motor is explosion-proof (compliance with applicable ATEX regulations under local conditions must be verified)
Agitator

Agitator arrangement: eccentric in top cover
Agitator equipment: drive adjustable by handwheel
