1860 升可加热/冷却反应容器，由 V4A 制成，配备 1.1 千瓦防爆搅拌器

INOX - MAURER AG 8078

GENERAL
Design: suspended
Notes: 2 support brackets made of V2A (contact surface oriented differently; see photos); outlet with flanged reducer
Rotational speed: 177 rpm
Internal diameter: 990 mm
Njdoxqa Tcopfx Ab Rskt
Overall length: 3,700 mm
Heating/cooling: available
Power: 1.1 kW
Max. permissible operating temperature: 200 °C
Max. permissible operating pressure: 16.0 bar
Max. overpressure: 3.2 bar
Top head: bolted cover
Agitator: propeller
Location: Bremen
Cylinder temperature control: half-pipe coil

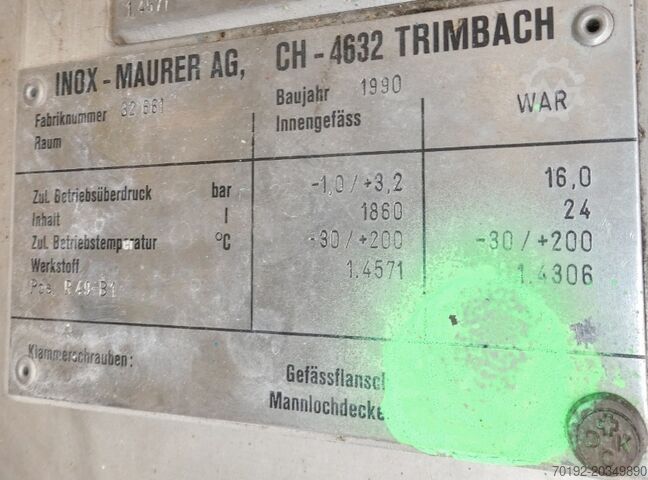

Nameplate:
Vacuum: 1.0 bar
Volume: 1,860 litres
Double jacket volume: 24.0 litres
Cylinder wall thickness: 5.2 mm
Product-contact material: V4A 1.4571 (AISI316)
Condition: used
Most recent application: pharmaceutical chemicals

VESSEL
Max. permissible operating temperature: 200 °C
Support type: support brackets

HEATING/COOLING JACKET
Bottom temperature control: half-pipe coil

EQUIPMENT
Outlet: DN80 flange
Note: minor residues

MATERIAL SPECS
Temperature control system material: AISI 304 (V2A) 1.4306

AGITATOR
Voltage: 220/380 Volt
Agitator arrangement: off-center in top head

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 3.9 mm
Top head wall thickness: 4.0 mm
