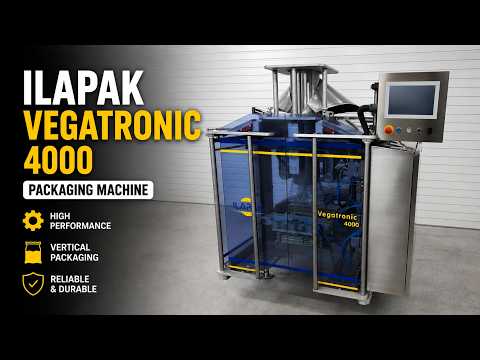

Ilapak Vegatronic 4000

The machine is in very good condition – like new.

Equipped with a vertical heating element and sealing jaws for packaging in PE (polyethylene) film – a complete set of jaws for laminates is available.

Forming tube for packages with a width of 350 mm – other sizes are available.

Technical data for ILAPAK Vegatronic 4000 VFFS:

▪️ Output: up to 140 packages/min
▪️ Machine type: Continuous Film Motion
▪️ Type: VFFS – Vertical Form Fill Seal

Bag size:
▪️ Minimum width: 70 mm
▪️ Maximum width: 410 mm
▪️ Maximum length: 600 mm

Supported films:
▪️ Heat-sealable films
▪️ Polypropylene (PP)
Pjdey Tqybepfx Ai Tjgu
▪️ Laminates
▪️ PE (polyethylene) film

Film roll:
▪️ Maximum roll width: 880 mm
▪️ Maximum outer diameter: 550 mm
▪️ Core diameter: 76 mm
▪️ Maximum roll weight: 100 kg

Power supply:
▪️ 400 V ±5%
▪️ 3 phases + neutral
▪️ 50 Hz
▪️ 7.5 kW

Compressed air:
▪️ 7 bar
▪️ 350–900 Nl/min

Control:
▪️ Industrial PC
▪️ 8.4” touch panel
▪️ Memory for up to 100 programs

Construction:
▪️ Stainless steel
▪️ Hygienic Open Frame design
▪️ Quick bag size changeover
▪️ Film centering
▪️ Servo drives

Machine dimensions:
▪️ 1478 × 2336 × 1550 mm

Weight:
▪️ Approx. 1500 kg
