2420升可加热/冷却的反应釜，带叶片搅拌器，AISI316

HANAG 8759

Location: Bremen
Condition: used
Volume: 2,420 liters
Vacuum: 1.0 bar
Max. overpressure: 3.2 bar
Tank

Max. operating temperature vessel / °C: 200 °C

Top head: removable / hinged top head
Construction: suspended
Tank
Supporting structure: ring

Heating/cooling: available
Double jacket volume: 100.0 liters
Knjdpfxexqaycj Af Aec
Max. permissible operating overpressure: 16.0 bar
Heating/cooling jacket

Max. permissible vacuum double jacket / tube side / bar: 1.0 bar

Max. permissible operating temperature: 200 °C
Cylinder temperature control: half-pipe coil
Heating/cooling jacket

Bottom temperature control: half-pipe coil

Internal diameter: 1,400 mm
Cylindrical height: 1,180 mm
Total height: 3,400 mm
Technical data / dimensions

Bottom wall thickness: 6.1 mm

Cylinder wall thickness: 6 mm
Technical data / dimensions

Top head wall thickness: 7 mm

Technical documentation: drawing, various documents, acceptance certificate
Equipment

Manhole / dome: in top head

Nameplate:
Equipment: crane lugs
Equipment

Discharge: available

Comments: Manhole DN 350/450 (manhole cover incomplete); support ring, Fe; flanges partially Fe
Last intended use: pharmaceutical chemistry
Product contact material: V4A 1.4435 (AISI316)
Material characteristics

Temperature control system material: AISI 304 (V2A) 1.4306

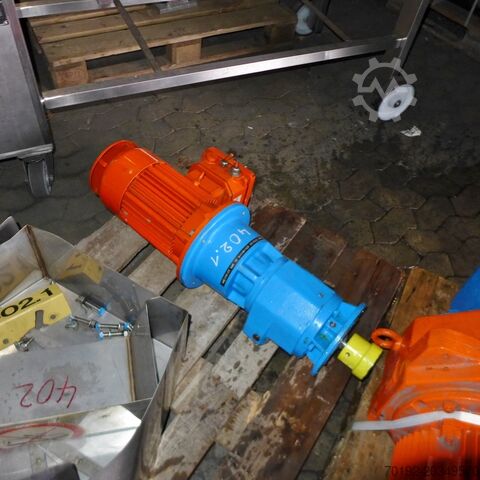

Agitator

Agitator manufacturer: Ekato

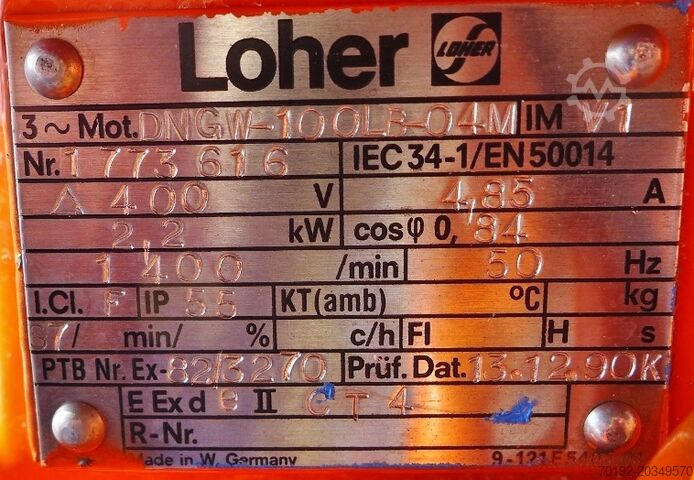

Power: 2.2 kW
Speed: 46 - 230 rpm
Agitator: gate agitator
Shaft seal: mechanical seal with thermosyphon vessel
Agitator

Voltage: 400 V

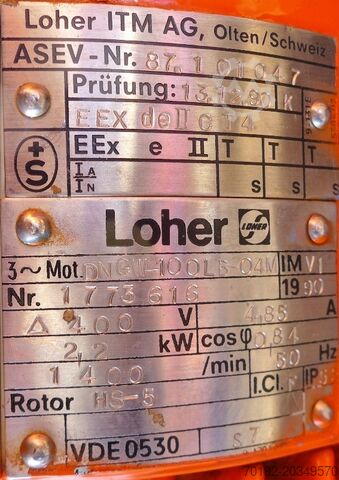

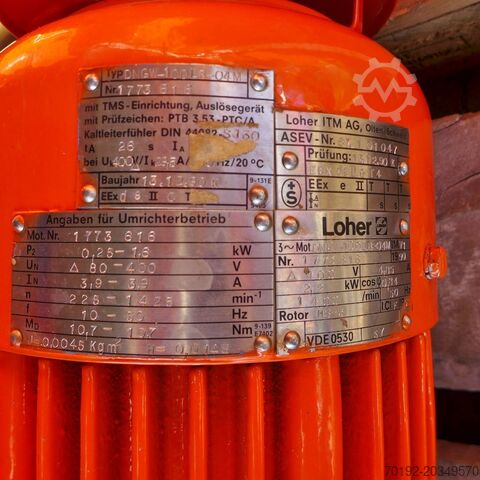

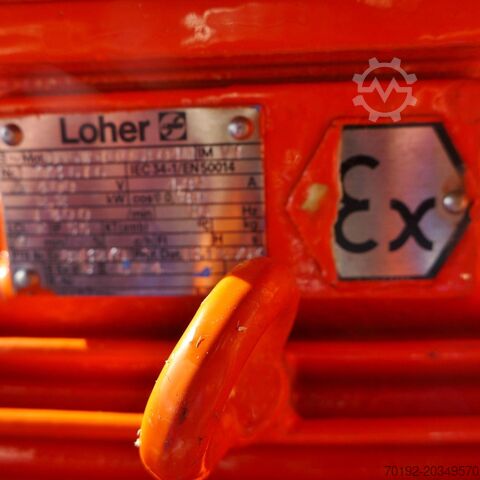

Explosion protection: motor is explosion-proof (compliance with current ATEX directives under local conditions must be checked)
Agitator

Current disruptor:
Agitator arrangement: centered in top head

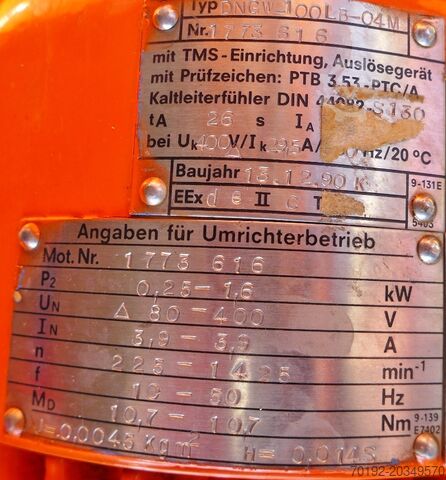

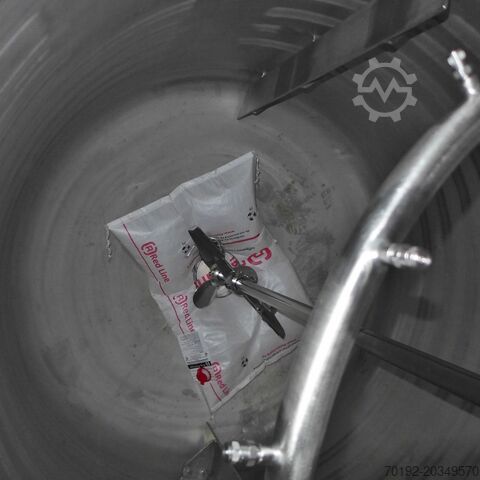

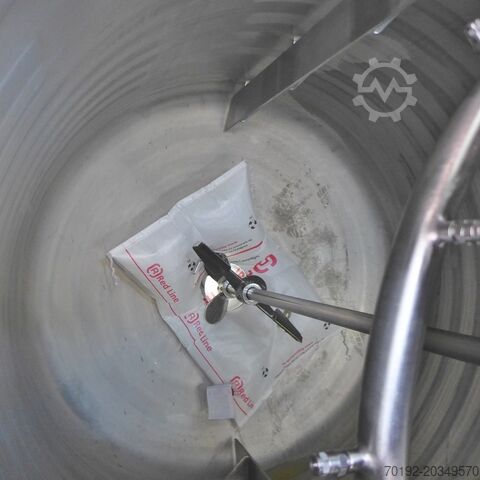

Agitator equipment: gate & propeller agitator elements installed on the shaft; speed was previously controlled by external frequency converter (no longer available); various technical documents for the agitator available
