旋转焊接工作台

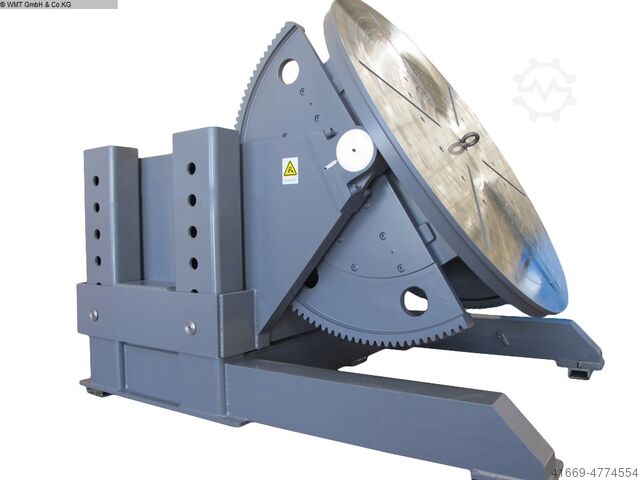

DUMETA D-HBE-100

table diameter 2000 mm
table load 10000 Kg
swivelling range 0 - 130 Grad
turning speeds 0,02 - 0,2 U/min
height adjustment 1450 - 2200 mm
max. torque on the faceplate 20000 Nm
engine output 1,5 / 2,0 kW
welding current 1000 Ampere
Nwjdpfx Aefv Ay Iofcof



- Manual height adjustment.
- Self-locking gearbox, therefore hardly any pre and after-run at eccentric
Load.
- Electronic components from Schneider, Siemens and Delta.
- Frequency-controlled, stepless speed of the turntable.
- High stability due to the robust construction.
- CE certificate.

The D-HBE series comes as a standard version with a cable remote control and a
footswitch.
