CONSTMACH 30M3/H Mini Mobil Concrete Mixing Plant

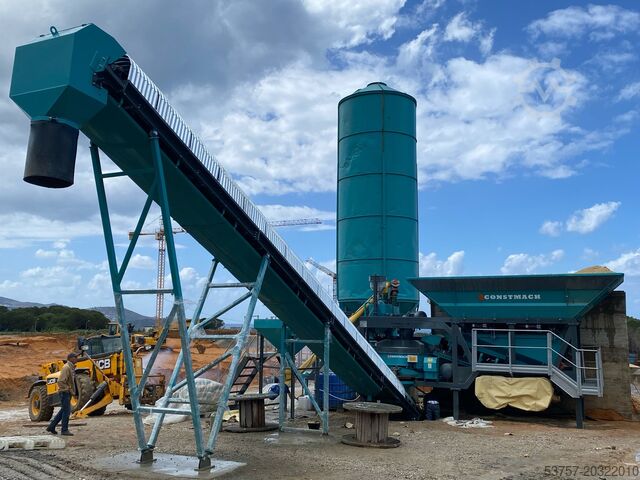

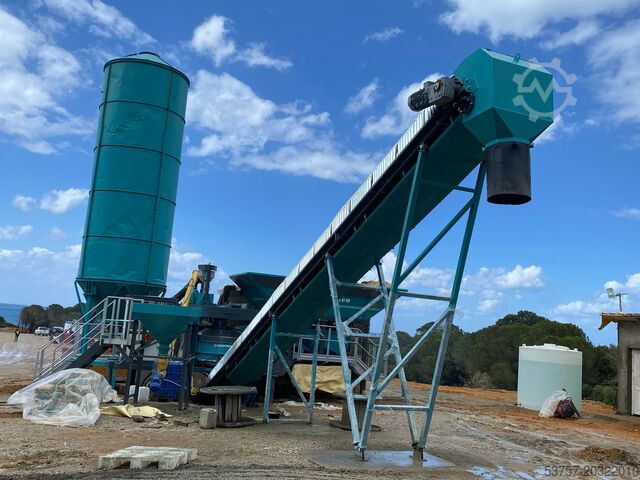

CONSTMACH MOBICOM 45 mobile concrete mixing plant is an innovative production solution that combines high performance with a compact design. With its structure requiring minimal preparation time and low installation costs on construction sites, it is an excellent choice for projects that frequently change locations. All equipment is designed to fit into a single 40 ft container, eliminating the need for extra permits or special equipment for road transport. Quick setup is possible without the need for a mobile crane, and the plant can be easily transported to different construction sites with the help of a truck. The mixer's position close to ground level allows the produced concrete to be transferred directly to the transit mixer via a conveyor belt.

MOBICOM 45 can be equipped with pan, single-shaft, or planetary mixer options according to user needs. The low feed height of the aggregate bunker allows the bucket to fill directly without a ramp. The advanced automation system is supported by SIEMENS and SCHNEIDER branded electronic components, and the entire production process is precisely controlled by advanced PLC-based software. It can be used with a cement silo or a bagged cement system, ensuring full compatibility with different production scenarios.

Mobicom 45 – Mobile Concrete Batching Plant Technical Specifications

Production Capacity: 45 m³/h
Transport Position Dimensions: 8 (L) x 2.3 (W) x 2.5 (H) meters
Weight: 9.5 tons
Total Motor Power: 55 kW
Required Electric Generator: 80 kVA
Mixer Options: Pan – Single Shaft – Planetary
Required Operating Area: 200 m²
Aggregate Storage Bunker: 4 x 6 m³
Aggregate Weighing Bunker: 1 m³
Aggregate Transfer Belt: 800 x 15,250 mm
Mixer Wet Concrete Volume: 0.75 m³
Cement Weighing Bunker: 450 kg
Water Weighing Bin: 300 liters
Additive Weighing Bin: 20 liters
Air Compressor: 300 liters, 4 kW
Cement Silo: Options ranging from 50 to 200 tons
Control Type: Fully Automatic

Ibsdpsxpg A Iofx Af Ajc
Why Should You Choose the Mobicom 45 Mobile Concrete Batch Plant?

At CONSTMACH, we prioritize quality, speed, and reliability in concrete production. MOBICOM 45 can be set up quickly on your construction site thanks to its compact design and reduces your production costs with its high efficiency. Its dimensions, which comply with international transportation standards, allow for easy transport between projects. It guarantees maximum performance with its long-lasting material quality, automation technology, and low maintenance requirements. With the CONSTMACH guarantee, you gain not just a machine, but a professional solution that increases continuity and profitability in production.
