CHIRON FZ 08 KW MAGNUM HIGH SPEED

For sale: Chiron FZ 08W Magnum High Speed, a high-speed vertical CNC machining center, manufactured in 2009 and equipped with a Siemens 840D control. The machine is located in Armilla, Spain, and is in perfect working condition, ideal for precision machining and series production.

Main Features:
Brand / Model: Chiron FZ 08W Magnum High Speed
Year of Manufacture: 2009
Dusdpfev R Hlisx Acyjl
CNC Control: Siemens 840D (PCU 50 / NCU 572.5, 6 axes, 1 channel)
Travel Distances:
X-axis: 450 mm
Y-axis: 270 mm
Z-axis: 310 mm
Spindle Speed: Up to 15,000 rpm
Tool Holder: HSK-A 40 DIN 69893
Spindle Power: 7.2 kW (25% duty cycle) / 2.2 kW (100% duty cycle)
Tool Magazine: 24 positions with automatic tool changer
Tool Change Time (chip-to-chip): ~1.9 s
Cooling System:
Internal high-pressure cooling (up to 150 bar)
High-pressure pump with dual-switchable 60 µm filter
Coolant Filtration System:
Automatic continuous paper filter (50 µm)
500-liter coolant tank
Chip Conveyor: Chain conveyor with 100-liter chip container
Automatic Loading Doors
Table Size: 2x660x350 mm
Maximum Table Load: 100 kg per side
Rapid Traverse Speed: Up to 75 m/min (X, Y, Z)
Axis Acceleration:
X-axis: 1 g
Y-axis: 1.5 g
Z-axis: 2 g
Additional Features:
High-speed package (increased acceleration and faster tool changes)
0/180° Work Area Switching System with intermediate partition
3D Touch Probe Renishaw TS 27R
Three-color signal light on the splash guard
230V power socket on the control panel
Connection for portable handwheel ("Mini Handwheel")
Integrated electrical cabinet cooling
Additional Spare Parts Included:
This machine comes with a spare parts package from another disassembled Chiron FZ 08W, making maintenance and repairs easier. The package includes:

Complete Peiseler 180° table
Complete tool changer system with motor
Spindle head (without motor)
Operator panel keyboards
Doors
Various electrical components
Power supply for servo amplifiers
2 servo amplifiers
Chip conveyor

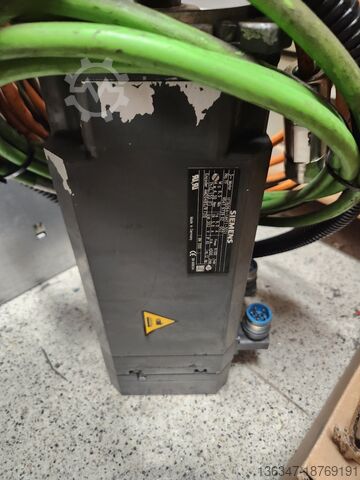

2 spare motors
Condition & Delivery:
Machine is fully operational and ready for production.
Available for testing at our facility.
Regular maintenance performed.
Video of the machine in operation available upon request.
Location & Shipping:
Location: Armilla, Spain
Shipping and commissioning can be arranged upon agreement.
For more information, contact us via phone or email. We are available to answer any questions and provide additional technical details.
