三轴（X-Y-Z）数控加工中心

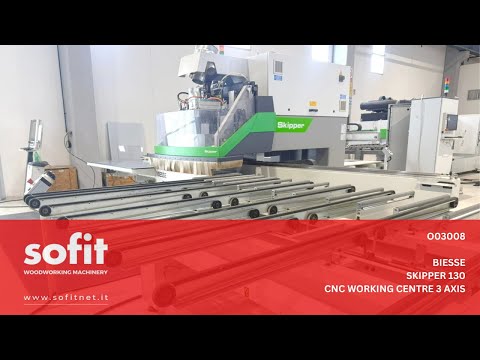

BIESSE Skipper 130

C.N.C. WORKING CENTER with 3 axes (X-Y-Z) - Goose-neck type
Movable panel (workpiece), static working head, Horizontal position of the panel (workpiece)
Numerical Control with Software BiesseWorks (Separate electric and command cabinet)
Safety cabin (enclosure) of the working head, Front emergency carpets
In-feeding working table (panel support)
No. 2 Workpieces fixing clamps (for the panels introduction in the working area)
Out-feeding table (with motorized belts)

Minimum workpieces dimensions (X - Y - Z) mm 90 x 70 x 8 (ca.)
Maximum workpieces dimensions (X - Y - Z) mm 3000 x 1300 x 60 (ca.)
Total installed power (Kw) 24

BOTTOM WORKING UNITS:
Independent vertical boring spindles (No.) 29
Independent horizontal boring spindles (No.) 10 (8 X + 2 Y)
Circular Grooving Saw (on X axis) dia. (mm) 160 (1 x kw 3,5 ca.)

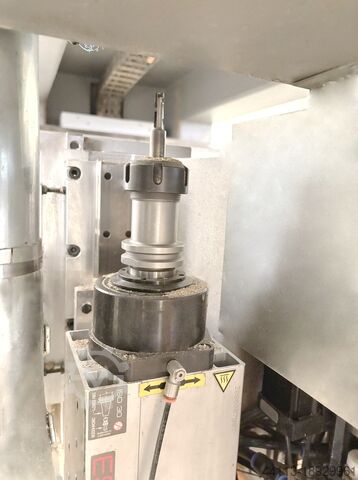

Vertical electro-spindle (No.) ISO 30 (1 x kw 4,5 ca.)

TOP WORKING UNITS:
Indipendent vertical drilling spindles (No.) 29
Indipendent horizontal drilling spindles (No.) 10 (8 X + 2 Y)
Circular Grooving Saw (on X axis) dia. (mm) 160 (1 x kw 3,5 ca.)
Duodpewb Alljfx Ab Aep
Vertical electro-spindle (No.) ISO 30 (1 x kw 4,5 ca.)
