双工作台加工中心

BIESSE Excel TT

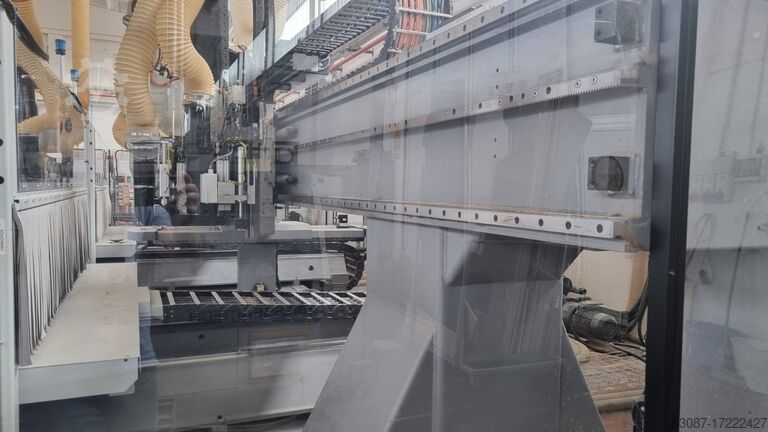

Double table machining center

Working range X 2,590 mm
Working range Y 2,260 mm
Working range Z 400 mm
Number of milling spindles 2
Liquid-cooled spindle
Main motor 19.2 kW
Max rotational speed 24,000 rpm
Aggregate heads
4 C-axis
Tool clamping system HSK-F63
Tool change positions central magazine 24
Tool change on each head from 12 positions
Boring heads vert. 20 (for each head)
Horizontal boring heads X 8
Horizontal boring heads Y 8
Blade for grooves in X, in Y
2 Platens
Number 4 360 m³/h vacuum pumps
T Jet system for chip blowing
Nesting
Manual labeling
Bar code reader
Tool length measurement
Kjdpfsuqw E Nsx Abfenf
Software BIESSE BIESSEWORKS ADVANCED, BIESSE B_NEST
Weight 17,900 kg
