2765升可加热/冷却V4A压力容器

A.C. KOSIK 8109

GENERAL
Design: suspended

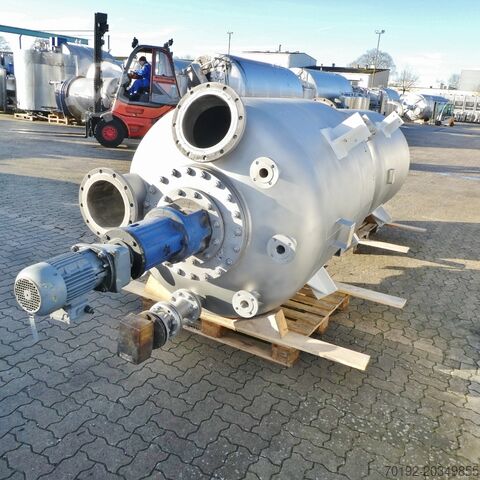

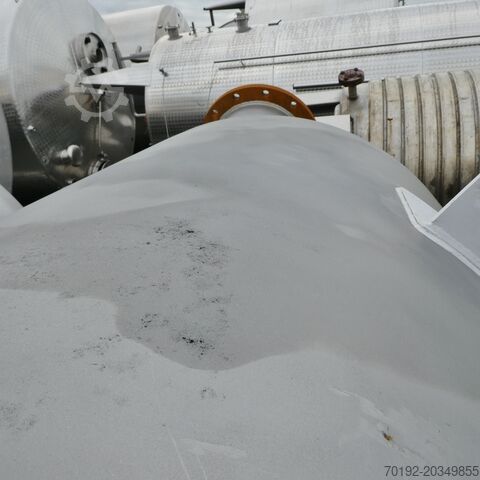

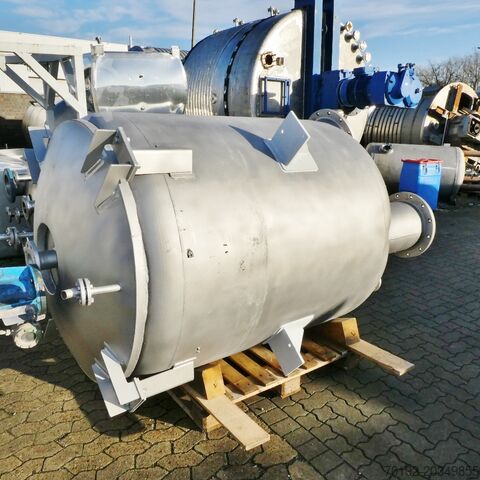

Comments: Vessel externally sandblasted and primed; double jacket bolted to lower end plate (see photos); 4 mounting lugs made of steel; exterior surface partially corroded (may require repairs)
Speed: 167 RPM
Internal diameter: 1,400 mm
Explosion protection: Motor is explosion-proof (compliance with current ATEX regulations under local conditions must be verified)
Total height: 3,350 mm
Heating/Cooling: available
Power: 2.6 kW
Lhodpfx Aboxqa R Us Rob
Max. permissible operating temperature: 150 °C
Max. permissible operating overpressure: 3.0 bar
Max. overpressure: 6.0 bar
Agitator: propeller
Support type: mounting lugs
Location: Bremen
Technical documents: drawing, TÜV certificates
Nameplate:
Vacuum: 1.0 bar
Volume: 2,765 liters
Double jacket volume: 42.0 liters
Cylinder wall thickness: 7 mm
Double jacket material: V2A 1.4541 (AISI304)
Product-contact material: V4A 1.4571 (AISI316)
Condition: used
Cylindrical height: 1,390 mm
Last application: chemicals

VESSEL
Max. permissible operating temperature: 200 °C

HEATING/COOLING JACKET
Bottom temperature control: double jacket

EQUIPMENT
Outlet: flange DN80
Note: slight residues/adhesions

AGITATOR 1
Agitator manufacturer: Ekato
Voltage: 500 V
Interference suppressor:

TECHNICAL DATA / DIMENSIONS
Lower end plate thickness: 7 mm
Agitator arrangement: centrally mounted on upper end plate
Upper end plate thickness: 9 mm
